The Controller Box

The brain, the pumps and the software in one unit. Plug it into the mains, run the tubes into your bottles, and the enclosure is yours to choose.

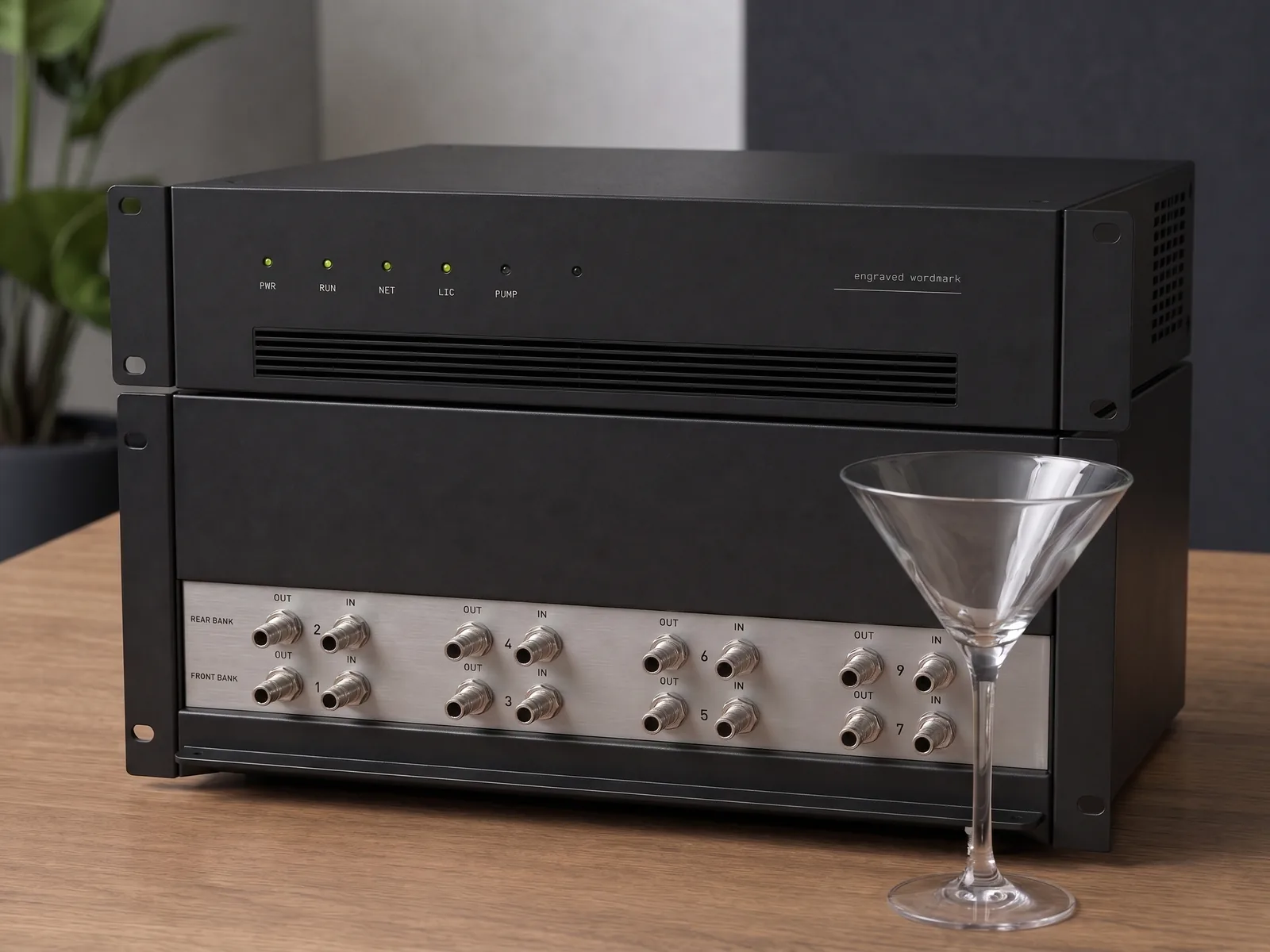

The brain box stacked on a pump module, a cocktail glass beside them
The brain on top, a PM-8 pump module under it. That is a complete machine, minus the cabinet.
How it works

Two boxes, one machine

The brain decides what to pour. The pump modules pour it. Everything around them - the counter, the doors, the finish - is yours to choose.

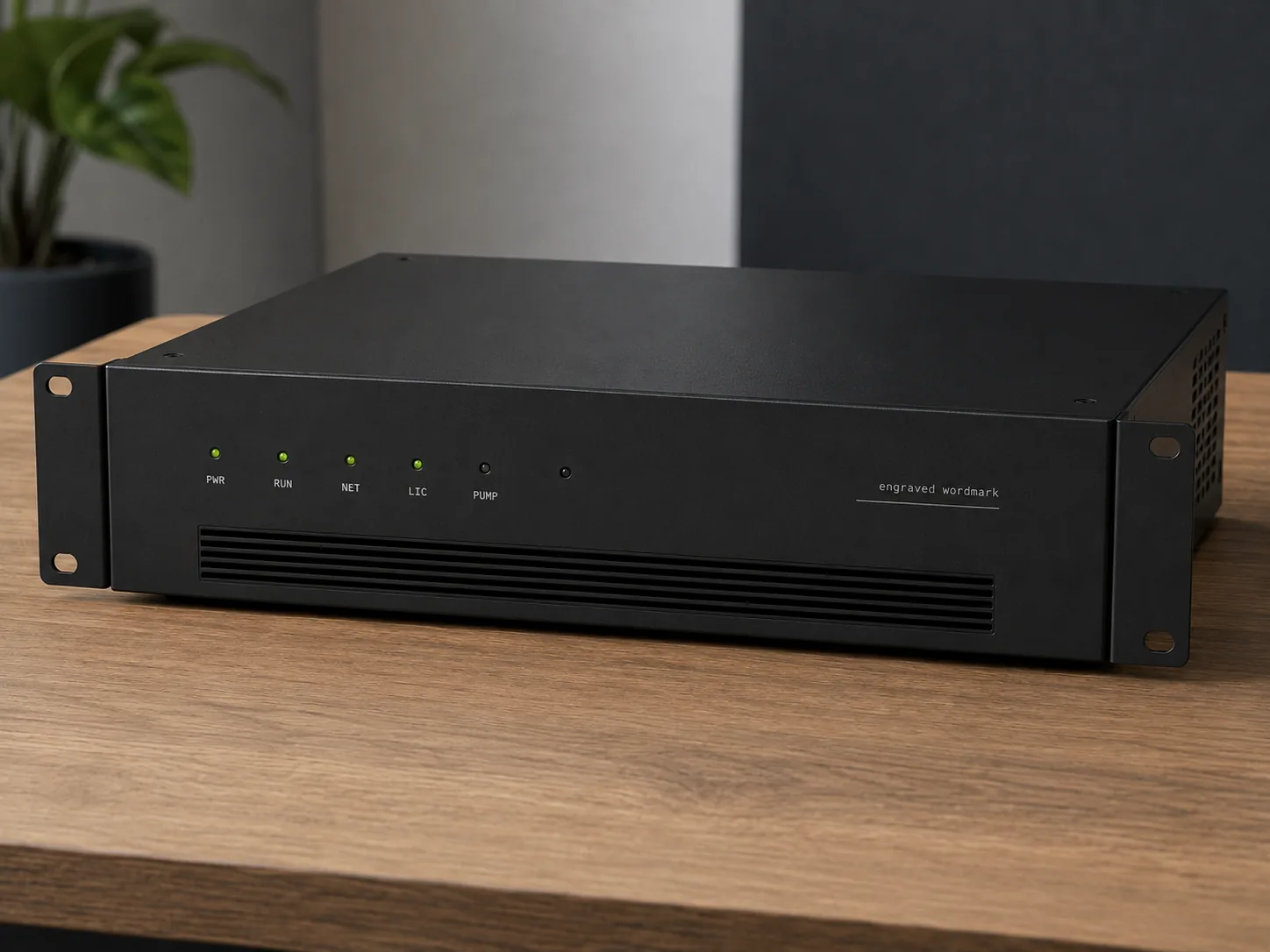

Front of the brain box, with PWR, RUN, NET, LIC and PUMP status lights

The brain

The computer, the software and your licence, in one rack-sized case. The lights on the front tell you at a glance that it is powered, running, online and pouring.

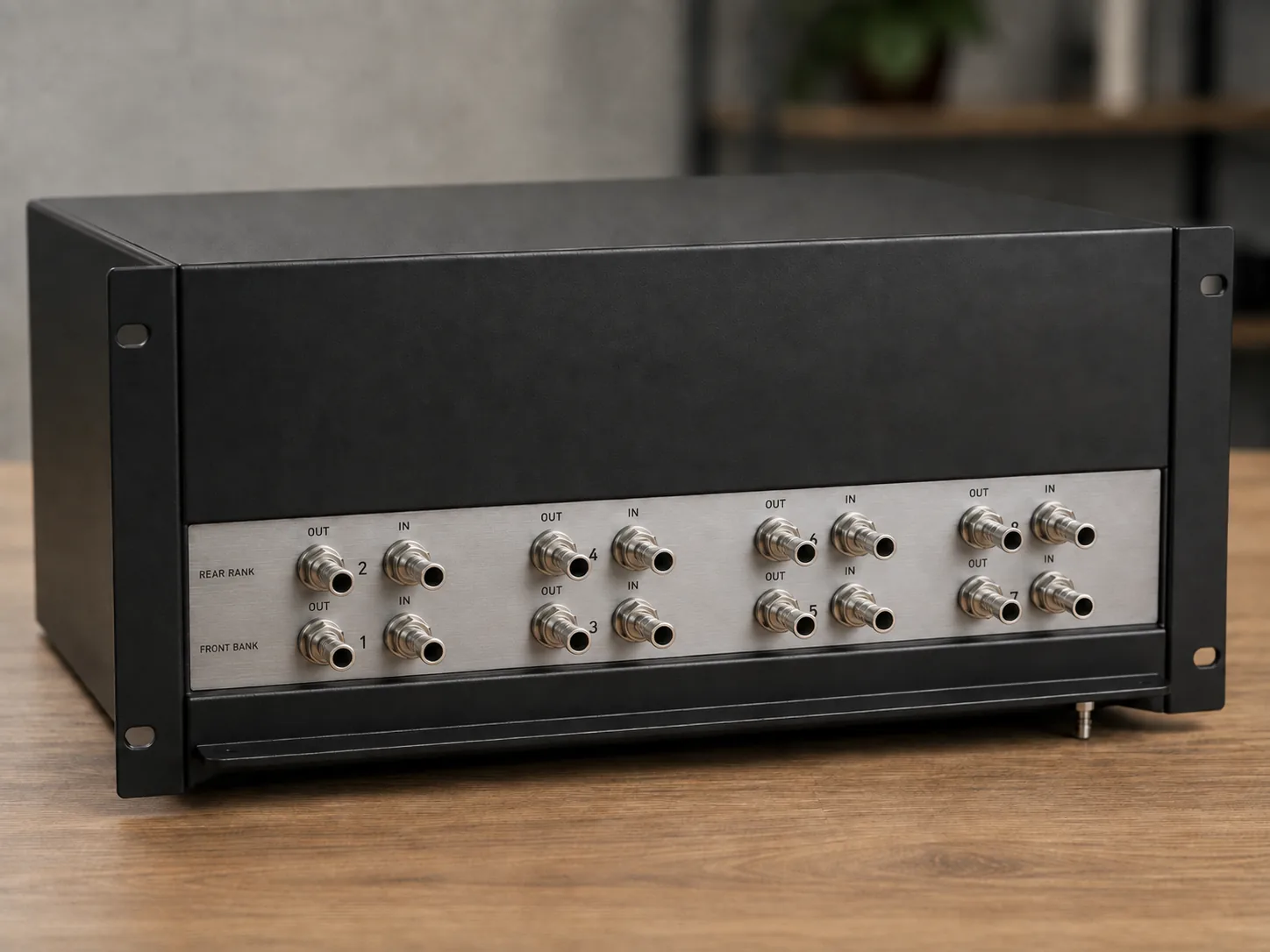

Front of a pump module, with eight numbered IN and OUT hose fittings on a brushed panel

The pump module

Eight numbered channels behind one front panel. A tube runs from the bottle to IN, another from OUT to the glass. No soldering, no wiring.

One cable between them

More drinks on the menu? Add a module and plug it into the one before it. The software finds it on its own. Five modules chain that way, which is 40 pumps on one machine.

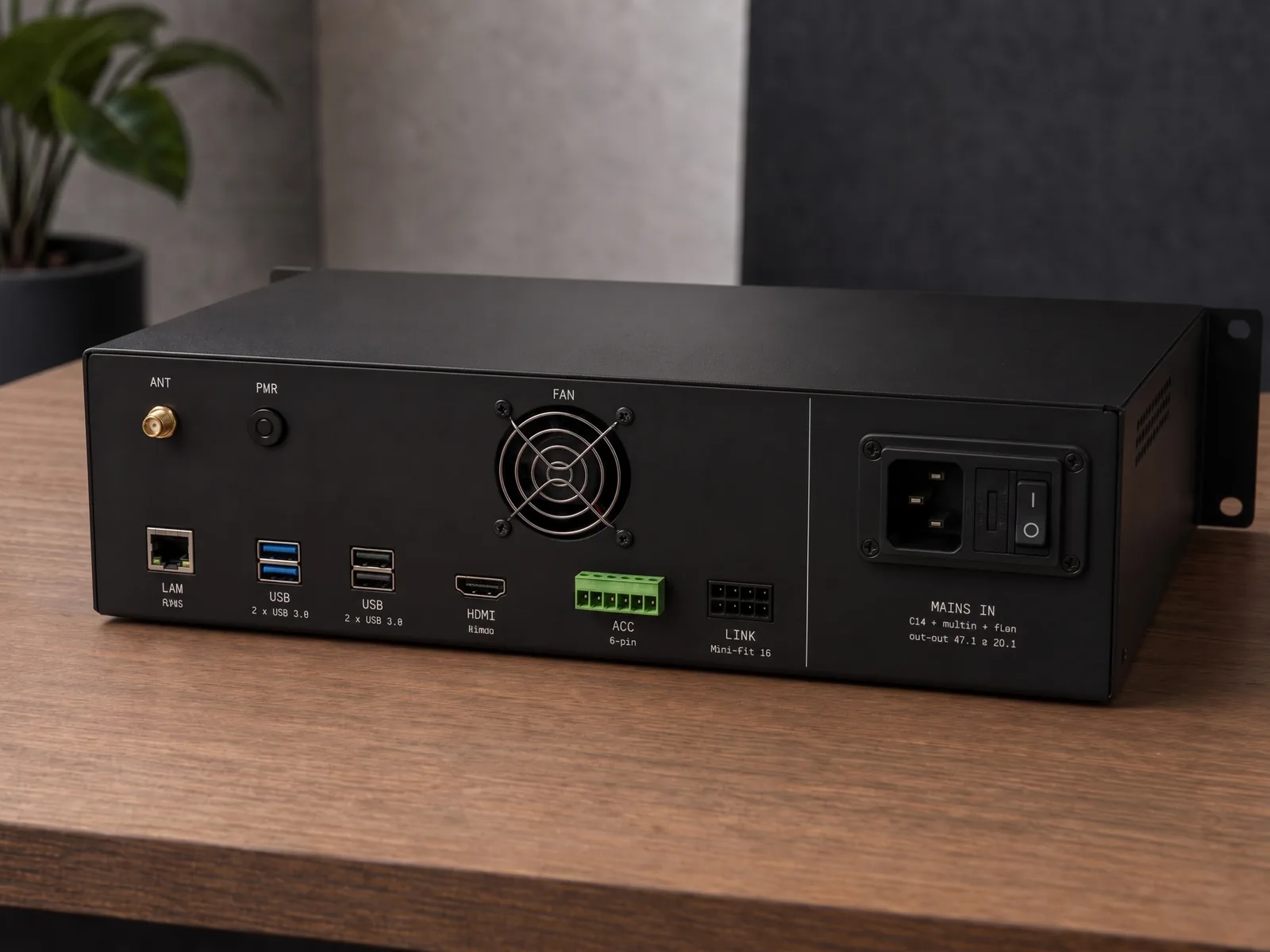

Rear of the brain box, with mains inlet, network, USB, HDMI and the link connector
Brain, rear: mains, network, screen and the link down to the first module.

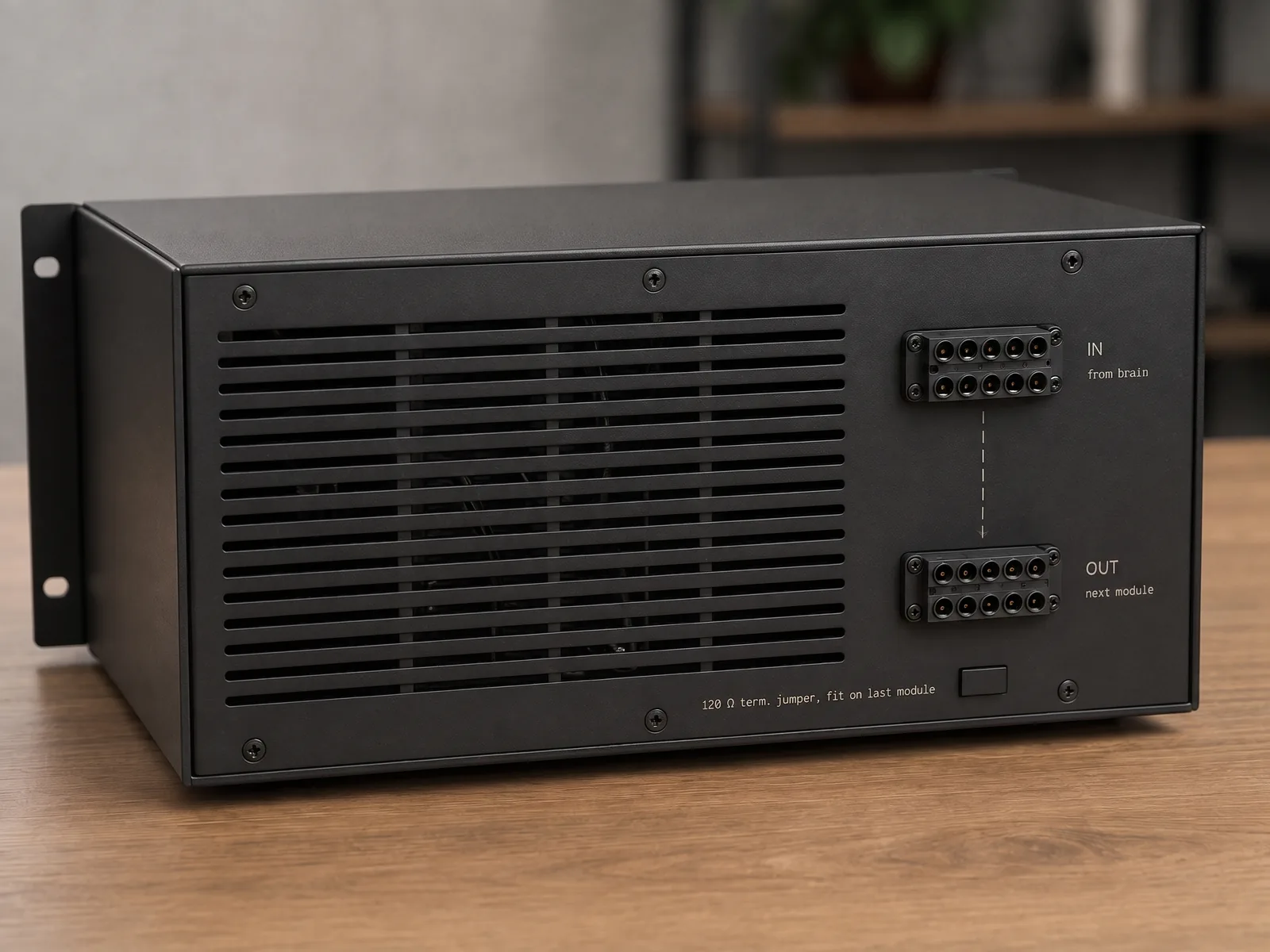

Rear of a pump module, with an IN connector from the brain and an OUT connector to the next module
Module, rear: one cable in from the brain, one out to the next module. That is the whole install.

Product renders. Finishes and panel markings may differ on the unit you receive.

1. Configure Your Box

Price follows the pump count. Start where you need to and extend later - the same box drives 4 pumps or 40.

Your pump mix

Mix families freely. Every channel on the board drives a DC pump or a valve indifferently, so the mix costs you nothing in modules - and a head can be swapped for the other family later on the same channel.

DC Pump Time-based dosing. The standard choice for spirits, juices and syrups. From €165 per pump
8
Valve For pressurised lines - beer, soda, tonic, sparkling mixers. The valve is only the head that opens the line: the keg kit (coupler, CO2, regulator, cooling, food-grade line) is not supplied here. From €135 per pump
0
Total pumps 8

Between 4 and 40 pumps.

Above 5 pumps the machine needs a paid licence - Personal at 99 EUR once, or Pro for analytics, pricing and cashless.

Your module stack

One brain, then enough pump modules to carry the channels. A PM-4 carries 4, a PM-8 carries 8, and neither cares which pump family sits on them.

1x Brain

Brain module (Raspberry Pi, power supply, I2C bus master, software preinstalled) €1,050
8 pumps and their modules, tubing and calibration €1,460
Box total €2,510

One-off hardware price, VAT excluded. The software licence is billed separately.

Extension Packs

Every box ships with the spare channels its modules carry. Adding pumps later is a head and a calibration - a new module only when the channels run out.

4 DC pumps €660
8 DC pumps €1,240

2. Pick a Reference Design

We do not build enclosures. These are proven designs an integrator can build for you, with the dimensions the box fits into.

Your Configuration

Controller box

8-pump box

€2,510
Software licence

Personal or above required

See plans
Reference design

Optional - pick one above

Quoted by the integrator
Box total €2,510

Hardware only, VAT excluded. Licence and enclosure are quoted separately.

Request a Quote Find an Integrator

What's in the Box

  • Raspberry Pi with Cocktail-O-Matic preinstalled
  • Pumps wired, addressed and bench-calibrated
  • Pump modules with spare channels for later extension
  • Power supply, fused mains inlet and wiring loom
  • Starter recipe collection (50+ recipes)
  • Integration sheet: tube runs, clearances, mounting points
  • Technical support
